- Suction Dredging Hose
─Overview

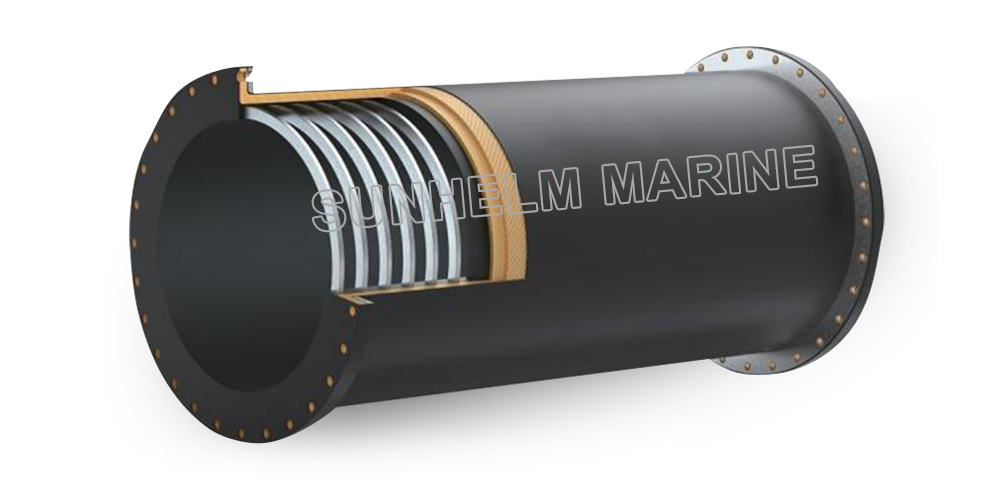

Suction Hose Overview
Suction dredging hose has the double properties of bearing both positive and negative pressure. It usually is installed between the dredger and pump and can work under negative pressure to absorb the mud. Meanwhile, the large diameter suction dredging hose is easy to be connected with the pipeline to reduce the oscillation caused by the waves to make sure smooth flowing in the pipeline.
─ Feature & Applications
Suction Dredging Hose
Feature & Applications
Feature & Benefit
- Abrasion-resistant and bending-resistant.
- Easy to install, flexible to use and safe.
- High impact resistance.
- Good wear resistance, flexibility and anti-scratch ability.
- The suitable working temperature: from -20℃ to +50℃.
Applications
- Used at port, dock for discharging sea water, silt, sand, flood, etc.
- Particularly suitable for work of dredging operation dock and port, Building project and soon.
─ Factory
Suction Hose
Manufacturer
SunHelm Marine specializes in the production of engineering products for dredger dredging pipelines. Sunhelm Marine has more than 20 years of production experience and has built large-scale production workshops with an indoor storage area of 12,000㎡. SunHelm Marine is a leading manufacturer of dredging pipeline products.
SunHelm Marine has the ability to produce dredging mud suction and discharge hoses with a maximum diameter of 1100mm and various types of special steel pipe floats for dredging. SunHelm Marine relies on various advanced testing facilities to accurately control product quality.
─Structure
Suction Dredging Hose
Technical Parameters
size(inch) | I.D.(mm) | W.P.(bar) | Length(m) |
8 | 200 | 10~35 | 1~11.8 |
10 | 250 | 10~35 | 1~11.8 |
12 | 300 | 10~35 | 1~11.8 |
16 | 400 | 10~35 | 1~11.8 |
20 | 500 | 10~35 | 1~11.8 |
24 | 600 | 10~35 | 1~11.8 |
26 | 650 | 10~35 | 1~11.8 |
30 | 750 | 10~35 | 1~11.8 |
32 | 800 | 10~35 | 1~11.8 |
34 | 850 | 10~35 | 1~11.8 |
Note: ID900mm & 1200mm, custom parameters are available. | |||
─ Supporting
Pipe Floats
Overview
Pipe floats are the flotation of pipes, hoses, and cables for dredging, mining, and marine applications.
They are always used with HDPE pipes, steel pipes, and rubber hoses to make the pipelines can work on the water. Besides, The pipe floats are an easy-to-install solution, which allows pipes to bend, while maintaining low resistance to waves, wind, and current.
