- Floating Dredging Hose

─Overview

Floating Hose Overview

Floating dredging hose is equipped with PE foam body. Adjusted to the buoyance of the dredged material, usually used with dredgers for silt/gravel conveyance. Besides, it has good flexibility for the most challenging working environments. It can withstand wind, and waves and is suitable for the harshest sea or mining conditions.

─ Feature & Applications

Floating Dredging Hose

Feature & Applications

Feature & Benefit

Good flexibility, easy to multi-tube assembly operation.
Good anti-UV, anti-aging, wear resistance.
Good corrosion resistance to salt and sea water.
Pipeline bearing capacity, good ability to withstand wind and waves.
The suitable working temperature: from -20℃ to +50℃.

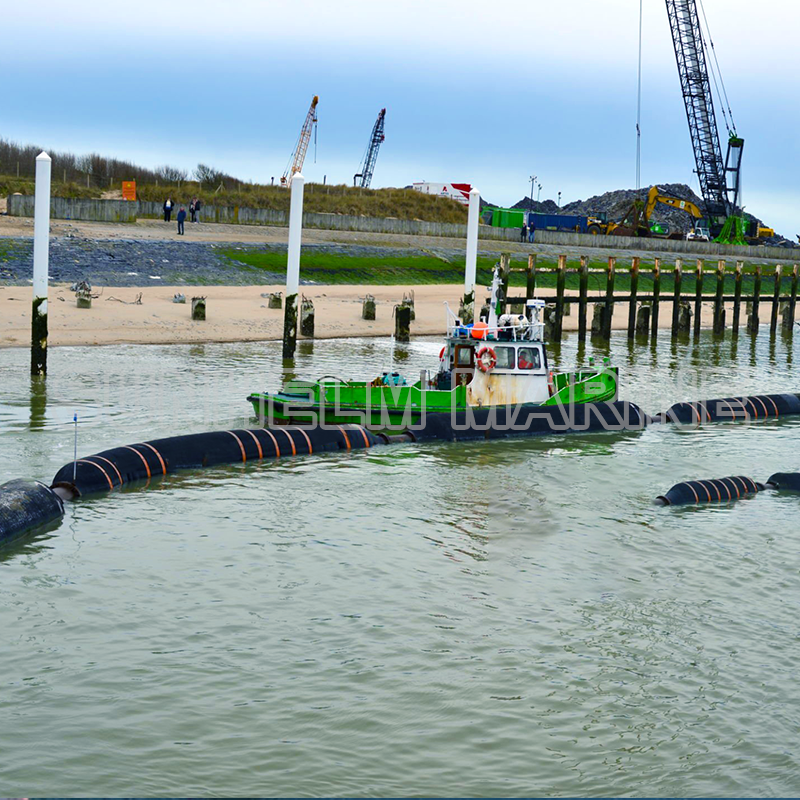

Applications

Used at port, dock for discharging sea water, silt, sand, flood, etc.
Particularly suitable for work of dredging operation dock and port, Building project and soon.

─ Factory

Floating Hose

Manufacturer

SunHelm Marine specializes in the production of engineering products for dredger dredging pipelines. Sunhelm Marine has more than 20 years of production experience and has built large-scale production workshops with an indoor storage area of 12,000㎡. SunHelm Marine is a leading manufacturer of dredging pipeline products.

SunHelm Marine has the ability to produce dredging mud suction and discharge hoses with a maximum diameter of 1100mm and various types of special steel pipe floats for dredging. SunHelm Marine relies on various advanced testing facilities to accurately control product quality.

About us

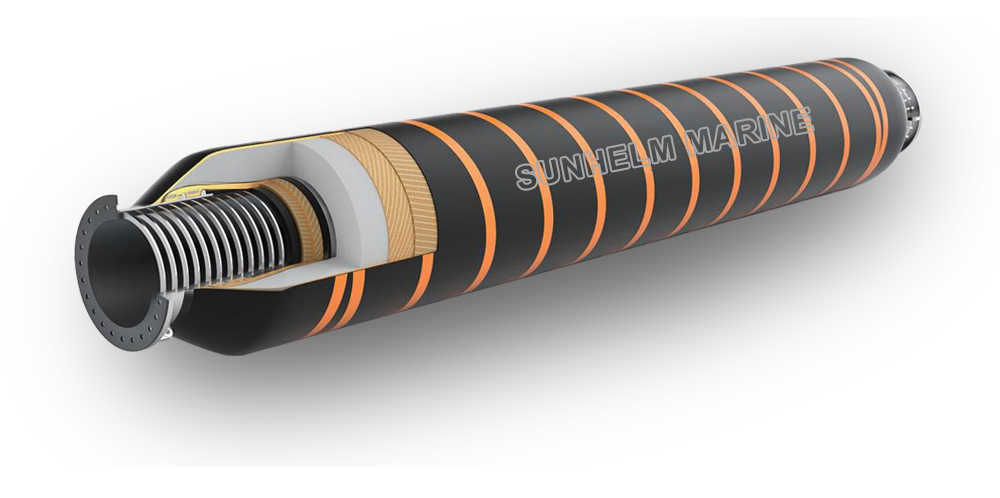

─Structure

Floating Dredging Hose

Technical Parameters

size(inch)	I.D.(mm)	W.P.(bar)	Tube Thickness ≥ (mm)	Cover Thickness ≥(mm)	Length(m)
8	200	10~35	10	4	11.8
10	250	10~35	10	4	11.8
12	300	10~35	10	4	11.8
16	400	10~35	12	5	11.8
20	500	10~35	12	5	11.8
24	600	10~35	20	5	11.8
26	650	10~35	25	5	11.8
30	750	10~35	30	6	11.8
32	800	10~35	32	6	11.8
34	850	10~35	32	6	11.8
Note: ID900mm & 1200mm, custom parameters are available.
